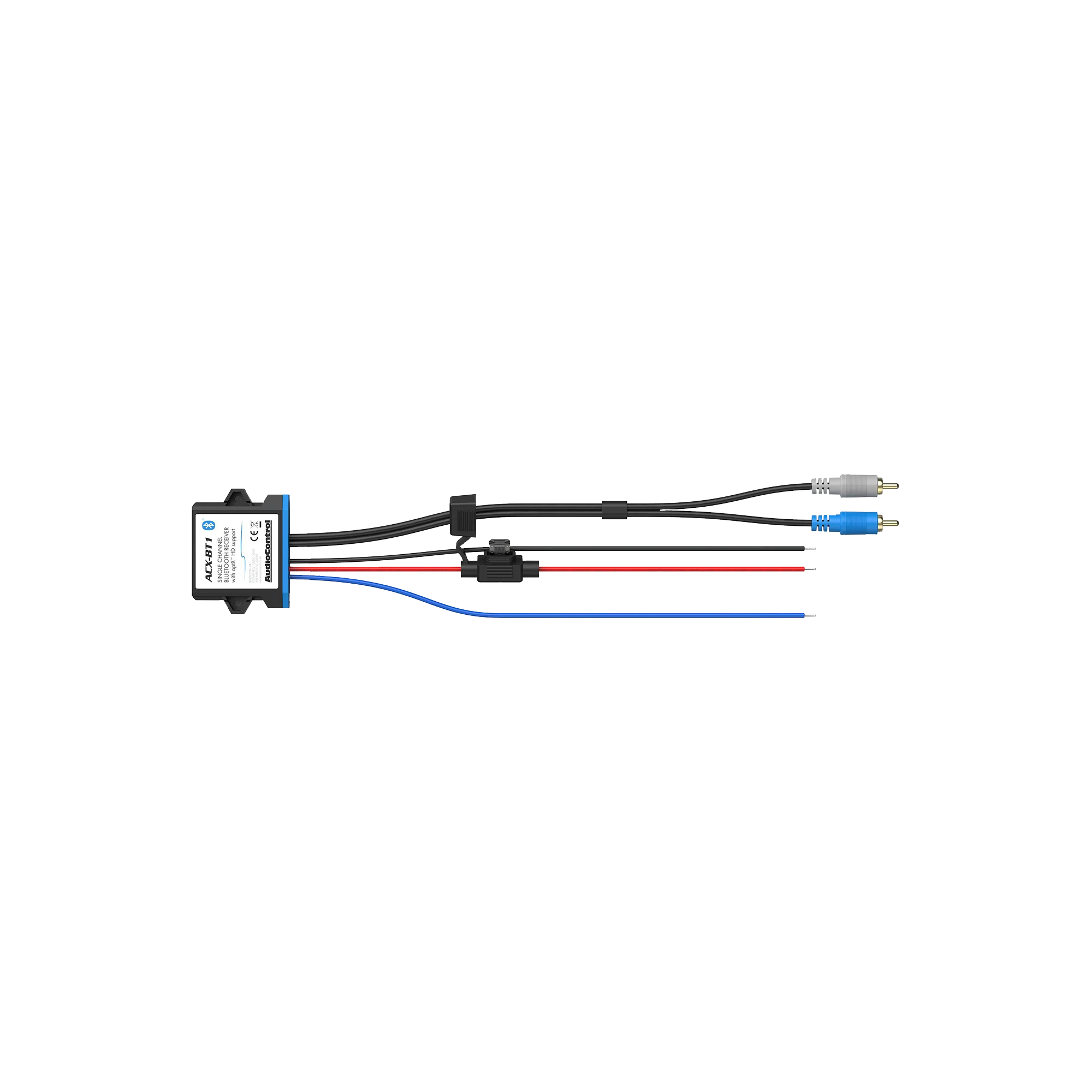

ACX-BT1 All-Weather Bluetooth HD Audio Streamer
The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.
FEATURES
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- IPX5 rated enclosure
- Built in fuse
SPECIFICATIONS
Bluetooth
- Version: 4.1
- aptX HD Compatible
OUTPUT
- Dual Line Level RCA
- Nominal Output Level: 1.5 Vrms
PERFORMANCE
- Signal to Noise Ratio: 95 dB
- Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
- Operating Range: 10+ meters (depending on environment)
GENERAL
- Current Draw: 35 mA
- Fuse Rating: 2 A
WEIGHT & DIMENSIONS
- Dimensions (enclosure): 2.0”L x 2.5”W x 0.7”H
- Weight: 0.2 lbs. (91 g)
IN THE BOX: ACX-BT1, Warranty, User Manual
California Proposition 65
- To our California customers: Please view your Proposition 65 warning here.
